Basic Circuit Components
Dive into Basic Circuit Components
Test your knowledge of essential basic circuit components with this engaging quiz! Understand how batteries work, the principles of current and resistance, and the differences between direct and alternating currents.
- 12 enlightening questions
- Multiple choice and text-based answers
- Perfect for electronics enthusiasts!
A battery stores chemical energy and converts this into...
Resistance
Current
Electrical energy
Heat
Resistance is the opposite to ...
Voltage
Current
Power
Ohms

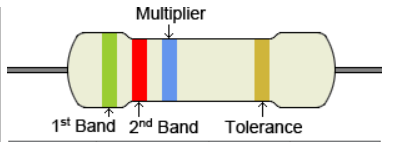

What is the resistance value of this resistor?
4
band resistor
4-Band_Resistor.svg
band resistor270, 000 ohms 10%
1565- ohms 2%
275 ohms 5%
270, 000 ohms 5%
Current is the ...
Flow of electrons
Flow of electric charge
Always moves from positive to negative
All of the above
Direct Current ...
Is from a battery or generator
From a power point
Not at all dangerous
The same as Alternating Current
Alternating Current ...
Is from a battery or generator
From a power point
Not at all dangerous
The same as Direct Current
Electrical Current ...
Can not be conducted by people
Can only be conducted by people
Will always take the easiest path to the ground
Is not at all dangerous

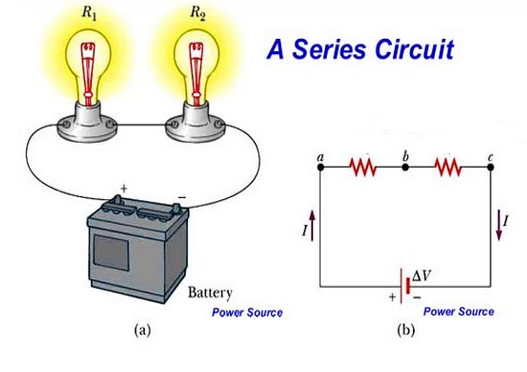

basic circut
What type of circuit is this?
Parallel
Alternating Current
It is not a circuit
Series
What type of circuit is this?

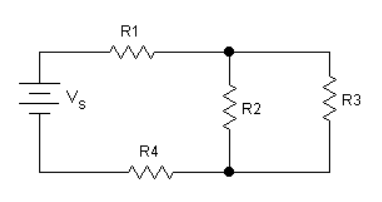

What is this circuit?
DC series
DC parallel
AC series
DC series and parallel

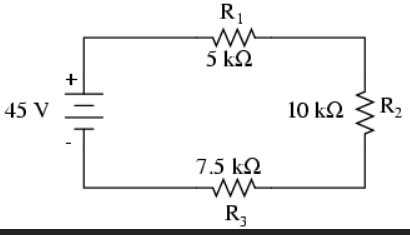

What is the total resistance in this series circuit?
45 Volts
375 Ohms
22.5 Ohms
22.5 Amps
What is the current (amps) in this circuit?
*remember:
V = I x R
I = V / R
R = V / I
