Challenge Your Knowledge: The Ultimate Engineering Quiz

Test your expertise in various engineering domains with our engaging quiz designed for enthusiasts and professionals alike. Explore questions that cover a range of topics, from financial calculations to electric vehicle standards.

12 insightful questions
Multiple choice and checkbox formats
Ideal for students, teachers, and engineers

12 Questions3 MinutesCreated by CalculatingTiger542

Anastasia Gkartzoni has just bought a Lotto lottery ticket and won 55.530.957,39€ . She wants to finance the future study of her newly born daughter and invests this money in a fund with a maturity of 25 years offering a promising yearly return of 3,45%. What is the amount available on the 25th birthday of his daughter? Round to 1st decimal.

Based on the Skidpad Event FSG2019 Results collect the elapsed times and the penalties for the Munchen TU and Trondheim NTNU. Add 2 DOOs to every run of Munchen & 1 DOO to every run of Trondheim NTNU. Choose the right statement: (Round to 3 decimal)

Trondheim NTNU is 2nd and their absolute point difference is 6.816.

Trondheim NTNU is 1st and their absolute point difference is 6.916.

Trondheim NTNU is 1st and their absolute point difference is 6.816.

Trondheim NTNU is 2nd and their absolute point difference is 6.916.

Choose the true statements:

The sixth decimal of number π is 2.

The difference between Endurance (CV) and Trackdrive (DV) is 125 points.

To optimize the monocoque torsional stiffness the best orientation of carbon fibers to use in the first ply of the outter skin is 90º.

The nominal voltage of Lithium Polymer battery is 4,2 V

You’re in FS Spain where it hasn’t rained for days. You are on the track to start skidpad. Select what is false:

Your team has four runs.

Two drivers are participating in this event.

Your car is running with the set of dry tires.

If your team finishes at least one run without DNF you are awarded 3.5 points.

The run time is the sum of the timed left and timed right circles plus penalties.

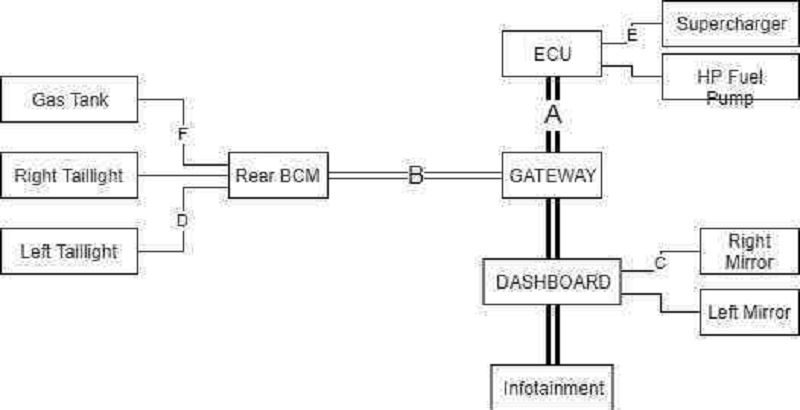

A vehicle has the network architecture depicted below. If the load on each edge is proportionate to the edge’s bold-ness and size, choose which protocol or transmission type is more suitable for each of the edges A through F.

A: FlexRay, B: CAN, C: LIN, D: LIN, E:LIN, F:Analog

A: Analog, B:LIN, C:CAN, D: CAN, E:CAN, F:CAN

A:CAN, B:CAN, C:CAN, D:CAN, E:CAN, F:CAN

A:FlexRay, B:FlexRay, C:CAN, D:CAN, E:CAN, F:Analog

A:FlexRay:, B:LIN, C:LIN, D:LIN, E:Analog, F:Analog

A:FlexRay:, B:CAN, C:LIN, D:LIN, E:Analog, F:Analog

You just found out that your team has been deregistered. What is true?

As long as the application is made in the 24 hours following the de-registration, your team will enter the waiting list.

There will not be a chance to submit an application to that competition for that year.

Your team will be disgraced and your ancestors will be spinning in their graves from shame.

None of the above.

While changing from dry to wet tires which amount of time is added to the team’s total time for endurance?

Any time in excess of ten minutes without driver change, or thirteen minutes with driver change is added.

No time is added for changing tires if the team is obligated to do it

All the time the team took to change the tires is added

Any time in excess of eleven minutes without driver change, or fourteen minutes with driver change is added

If the weather condition changes to dry, no time is added for changing to wet tires

Choose what is true for an EV shutdown circuit:

When the LVMS is in the off position, the BSPD, IMD and AMS are always open.

The LVMS must not act through any power stage.

The “Activation Logic” may not be placed on the high-side of the AIRs.

Multiplexing shutdown circuit signals is permitted.

Order the materials by their thermal conductivity at 300K from greatest to smallest

2024-T6 Alloy, Magnesium, AISI 1010, Chromium, Pure Copper, Titanium

2024-T6-Alloy, Pure Copper, AISI 1010, Chromium, Titanium, Magnesium

Pure Copper, 2024-T6 Alloy, Magnesium, Chromium, AISI 1010, Titanium

Pure Copper, Magnesium, 2024-T6 Alloy, Titanium, Magnesium, Chromium

Magnesium, Pure Copper, Magnesium, 2024-T6 Alloy, Chromium, AISI 1010

Pure Copper, 2024-T6 Alloy, Magnesium, Chromium, Titanium, AISI 1010

Choose what is true:

The ground clearance is checked with the heavier driver onboard.

During the driver egress test, the driver must remove the steering wheel.

During the brake test, the vehicle may stop while the TSAL is still flashing red.

A LV PCB and a HV PCB that are in the same enclosure, must be separated by at least 10mm.

Consider that George Clooney, Neymay Jr, Elon Musk & Robert Downey Jr were born in 2020. Calculate the total penalty points.Round to 1st decimal
