CREATED BY
ABDULLAH ALSUFYANI

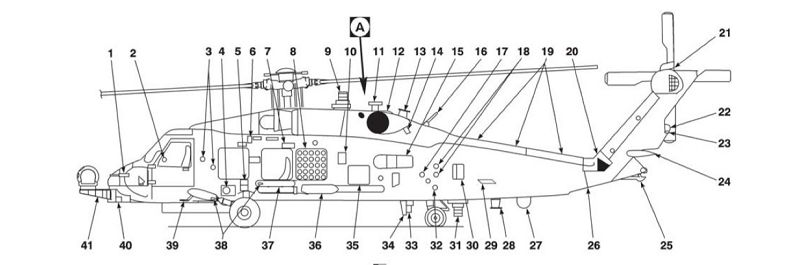

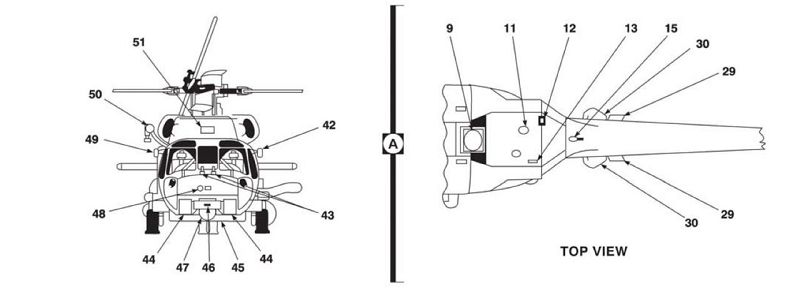

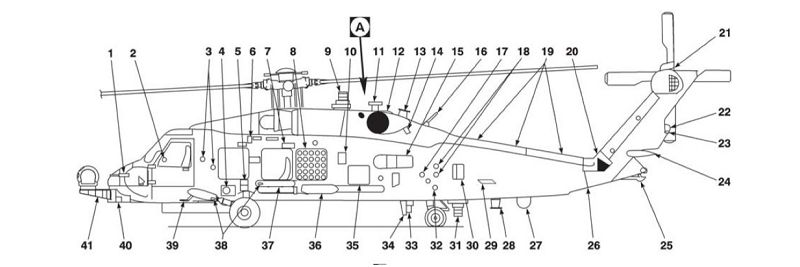

MH60R PARTS NAMES AND LOCATIONS
What is the name for part number 1
LEFT PITOT TUBE
EXTERNAL ICS/ARM PANEL
ESM ANTENNA
What is the name for part number 2
COCKPIT VENT WINDOW
MOORING SHACKLE
STATIC PORTS
What is the name for part number 3
STATIC PORTS
APU EXHAUST
SONOBUOY LAUNCHER CHARGER PANEL
What is the name for part number 4
AVIONICS COOLING EXHAUST
POSITION LIGHT
EMERGENCY LOCATOR ANTENNA
What is the name for part number 5
EXTERNAL ICS/ARM PANEL
INBOARD LEFT PYLON
OUTBOARD LEFT PYLON
What is the name for part number 6
MOORING SHACKLE
APU EXHAUST
ENGINE WASH/SONOBUOY
What is the name for part number 7
ENGINE WASH/SONOBUOY LAUNCHER CHARGER PANEL
COUNTERMEASURES DISPENSER
SONOBUOY LAUNCHER
What is the name for part number 8
SONOBUOY LAUNCHER
GRAVITY REFUELING PORT
COUNTERMEASURES DISPENSER
What is the name for part number 9
UPPER IRCM TRANSMITTER
UPPER ANTICOLLISION LIGHT
UPPER VHF/UHF/IFF ANTENNA
What is the name for part number 10
GRAVITY REFUELING PORT
PRESSURE REFUELING PORT
WHEEL STRUT INSPECTION WINDOW
What is the name for part number 11
GPS ANTENNA NO. 1
SATCOM / GPS NO. 2 ANTENNA
EMERGENCY LOCATOR ANTENNA
What is the name for part number 12
GPS ANTENNA NO. 1
SATCOM / GPS NO. 2 ANTENNA
UPPER IRCM TRANSMITTER
What is the name for part number 13
UPPER VHF/UHF/IFF ANTENNA
SEARCH RADAR ANTENNA
VOR/LOC ANTENNA
What is the name for part number 14
APU EXHAUST
ESM ANTENNA
MOORING SHACKLE
What is the name for part number 15
ESM ANTENNA
APU EXHAUST
PYLON FOLD ASSIST CONNECTION
What is the name for part number 16
EMERGENCY LOCATOR ANTENNA
AFT MISSILE DETECTION SENSOR
UPPER VHF/UHF/IFF ANTENNA
What is the name for part number 17
STATIC PORTS
FIRE EXTINGUISHER FRANGIBLE DISC
AVIONICS COOLING EXHAUST
What is the name for part number 18
TAIL WHEEL STRUT INSPECTION WINDOW
GRAVITY REFUELING PORT
FIRE EXTINGUISHER FRANGIBLE DISC
What is the name for part number 19
TAIL ROTOR DRIVE SHAFT COVER
INTERMEDIATE GEAR BOX
TAIL BUMPER
What is the name for part number 20
INTERMEDIATE GEAR BOX
AFT DATA LINK ANTENNA
AFT MISSILE DETECTION SENSOR
What is the name for part number 21
UPPER ANTICOLLISION LIGHT
AFT MISSILE DETECTION SENSOR
TAIL POSITION LIGHT
What is the name for part number 22
AFT MISSILE DETECTION SENSOR
AFT DATA LINK ANTENNA
AFT VHF/UHF/TACAN ANTENNA
What is the name for part number 23
TAIL POSITION LIGHT
TAIL BUMPER
TAIL STABILATOR
What is the name for part number 24
STABILATOR
ROTOR WING
AFT ROTOR
What is the name for part number 25
TAIL BUMPER
TAIL COVER
TAIL
What is the name for part number 26
PYLON FOLD ASSIST CONNECTION
TAIL WHEEL STRUT INSPECTION
TAIL GEAR BOX
What is the name for part number 27
AFT DATA LINK ANTENNA
AFT MISSILE DETECTION SENSOR
LOWER VHF/UHF/TACAN ANTENNA
What is the name for part number 28
LOWER IRCM TRANSMITTER
LOWER VHF/UHF/TACAN ANTENNA
LOWER VOR/LOC ANTENNA
What is the name for part number 29
VOR/LOC ANTENNA
LOWER IRCM TRANSMITTER
LOWER EMERGENCY LOCATOR
What is the name for part number 30
COUNTERMEASURES DISPENSER
AVIONICS COOLING EXHAUST
APU EXHAUST
What is the name for part number 31
LOWER IRCM TRANSMITTER
LOWER VHF/UHF/TACAN ANTENNA
LOWER /LOC ANTENNA
What is the name for part number 32
TAIL WHEEL STRUT INSPECTION WINDOW
MOORING SHACKLE
FIRE EXTINGUISHER FRANGIBLE DISC
What is the name for part number 33
LOWER ANTICOLLISION LIGHT
LOWER GPS ANTENNA NO. 1
LOWER VHF/UHF/TACAN ANTENNA
What is the name for part number 34
SONOBUOY ANTENNA
FUEL DUMPING EXT
DATA LINK ANTENNA
What is the name for part number 35
GRAVITY REFUELING PORT
PRESSURE REFUELING PORT
INBOARD LEFT PYLON
What is the name for part number 36
INBOARD LEFT PYLON
OUTBOARD LEFT PYLON
POSITION LIGHT
What is the name for part number 37
OUTBOARD LEFT PYLON
SONOBUOY LAUNCHER
INBOARD LEFT PYLON
What is the name for part number 38
POSITION LIGHT
UPPER ANTICOLLISION LIGHT
PYLON FOLD ASSIST CONNECTION
What is the name for part number 39
COCKPIT STEP (BOTH SIDES)
FORWARD MISSILE DETECTION
COCKPIT VENT WINDOW
What is the name for part number 40
FORWARD MISSILE DETECTION
FORWARD DATA LINK ANTENNA
SENSOR NOSE MOUNT PLATFORM
What is the name for part number 41
SENSOR NOSE MOUNT PLATFORM
FLAIR
OUTSIDE AIR TEMPERATURE SENSORS
What is the name for part number 42
REAR VIEW MIRROR
COCKPIT VENT WINDOW
INSPECTION WINDOW
What is the name for part number 43
AIR TEMPERATURE SENSORS
OUTSIDE AIR TEMPERATURE SENSORS (STBD - DE-ICE, PORT - AOP)
PITOT TUBE
What is the name for part number 44
FORWARD DATA LINK ANTENNA
FORWARD ESM ANTENNA
FORWARD MISSILE DETECTION
What is the name for part number 45
SEARCH RADAR ANTENNA
FORWARD ESM ANTENNA
FORWARD DATA LINK ANTENNA
What is the name for part number 46
GLIDE SLOPE ANTENNA
NOSE MOUNT PLATFORM
SENSOR NOSE
What is the name for part number 47
FORWARD DATA LINK ANTENNA
FORWARD MISSILE DETECTION
TACAN ANTENNA
What is the name for part number 48
TACAN ANTENNA
SENSOR NOSE MOUNT PLATFORM
SEARCH RADAR ANTENNA
What is the name for part number 49
REAR VIEW MIRROR
STATIC PORTS
PILOT'S REAR VIEW MIRROR
What is the name for part number 50
CARGO HOIST
RESCUE HOIST
RMMCU
What is the name for part number 51
HYDRAULIC BAY COOLING INLET
EMERGENCY LOCATOR ANTENNA
COUNTERMEASURES DISPENSER
