Qz05

Inter-VLAN Routing Mastery Quiz
Test your knowledge on inter-VLAN routing with this comprehensive quiz designed for networking professionals and students. Challenge yourself with questions that cover a wide range of topics including Layer 3 solutions and configuration errors.
- 11 engaging questions
- Multiple choice, checkboxes, and fill-in-the-blank formats
- Instant feedback on your answers
A PC is to access a web server on another network. Which inter-VLAN method will provide the highest bandwidth at Layer 3 and also provide a default gateway for the PC?
Router on a stick
Multilayer switch with routing enabled
trunked interface between the router and the switch
multiple physical interfaces on the router, all connected to a Layer 2 switch

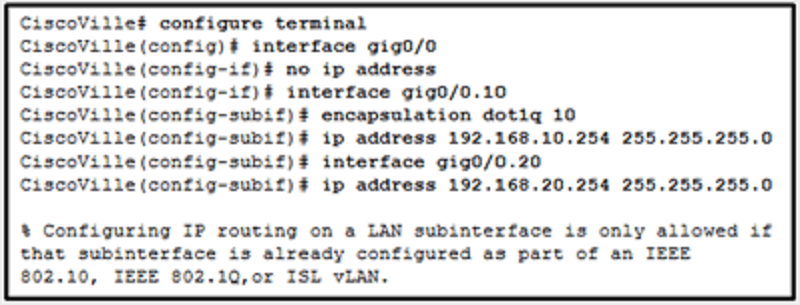

Refer to the exhibit. What is the cause of the error that is displayed in the configuration of inter-VLAN routing on router CiscoVille?
The gig0/0 interface does not support inter-VLAN routing.
The no shutdown command has not been configured.
The IP address on CiscoVille is incorrect.
The encapsulation dot1Q 20 command has not been configured.

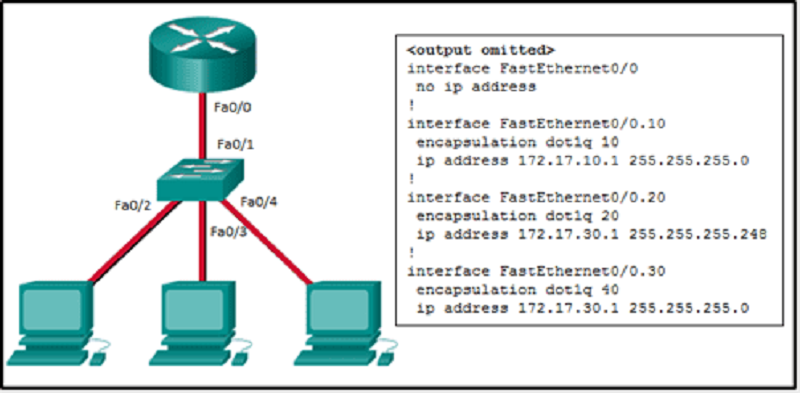

Which two errors can be identified from the show running-config command output from the router? (Choose two.)
There is no IP address that is configured for the router physical interface.
The VLAN ID for VLAN 30 is wrongly configured.
A command to configure the router physical interface as a trunk is missing.
The IP address and subnet mask are wrongly configured for VLAN 20.
The no shutdown command was not issued on subinterfaces.

The access interfaces do not have IP addresses and each should be configured with an IP address.
The FastEthernet0/2, FastEthernet0/3, and FastEthernet0/4 interfaces are configured as trunk.
The switch interface FastEthernet0/1 is configured to not negotiate and should be configured to negotiate.
The switch interfaces FastEthernet0/2, FastEthernet0/3, and FastEthernet0/4 are configured to not negotiate and should be configured to negotiate.
What is the meaning of the number 10 in the encapsulation dot1Q 10 native router subinterface command?
The interface number
the subinterface number
the subnet number
the VLAN ID
A network administrator enters the following command sequence on a Cisco 3560 switch. What is the purpose of these commands? Switch(config)# interface gigabitethernet 0/1 Switch(config-if)# no switchport
to shut down the Gi0/1 port
to make the Gi0/1 port a routed port
to enable the Gi0/1 port as a switch virtual interface
to enable the Gi0/1 port as a bridge virtual interface

Refer to the exhibit. A network administrator has configured router CiscoVille with the above commands to provide inter-VLAN routing. What type of port will be required on a switch that is connected to Gi0/0 on router CiscoVille to allow inter-VLAN routing?
Routed port
access port
trunk port
SVI
Which option should be used after the sdm prefer configuration command to enable static routing on Cisco Catalyst 2960 switches?
Switch(config)# sdm prefer qos
Switch(config)# sdm prefer default
Switch(config)# sdm prefer lanbase-routing
Switch(config)# sdm prefer dual-ipv4-and-ipv6
Which scalable method must be implemented in order to provide inter-VLAN routing on a switched network with more than 1000 VLANs?
configuring static routes on a Layer 2 switch device
routing traffic internally to a Layer 3 switch device
Connecting each physical router interface to a different physical switch port, with each switch port assigned to a different VLAN
connecting a router interface to a switch port that is configured in trunk mode to route packets between VLANs, with each VLAN assigned to a router subinterface

interdomain
router on a stick
multiple physical interfaces
routing via a multilayer switch
