Mastering Engineering Lines Quiz
Mastering Engineering Lines Quiz
Test your knowledge of engineering lines and dimensions with our engaging quiz! This quiz is designed for students, educators, and anyone interested in understanding the essential elements of technical drawings.
Key Features:
- Multiple choice questions
- Immediate feedback on your answers
- Learn about visible, hidden, and dimension lines

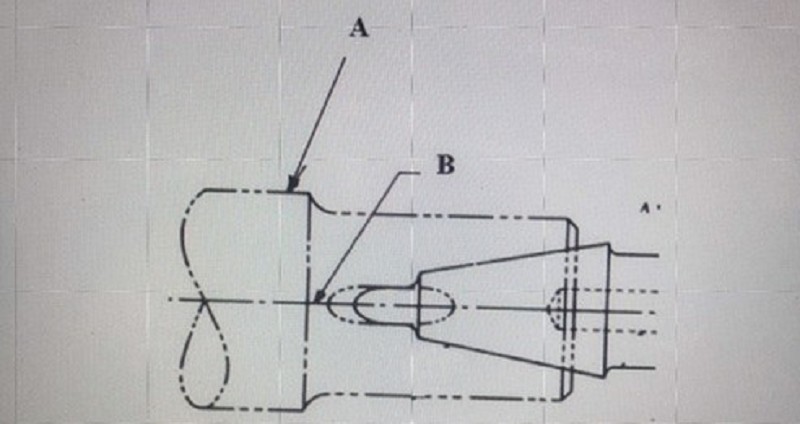

What is the name of the line shown at A?
Visible line
Phantom line
Center line
Hidden line

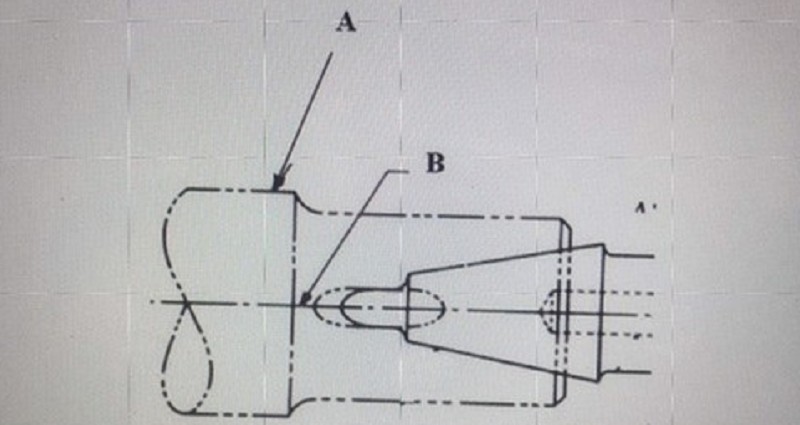

What is the name of the line shown at B
Center line
Hidden line
Visible line
Phantom line
Which of the following dimension shows an angular dimension?
0%
0
0%
0
0%
0
0%
0
What is the name given to a thick line that shows the outline of an object?
Visible line
Dimension line
Break line
Phantom line

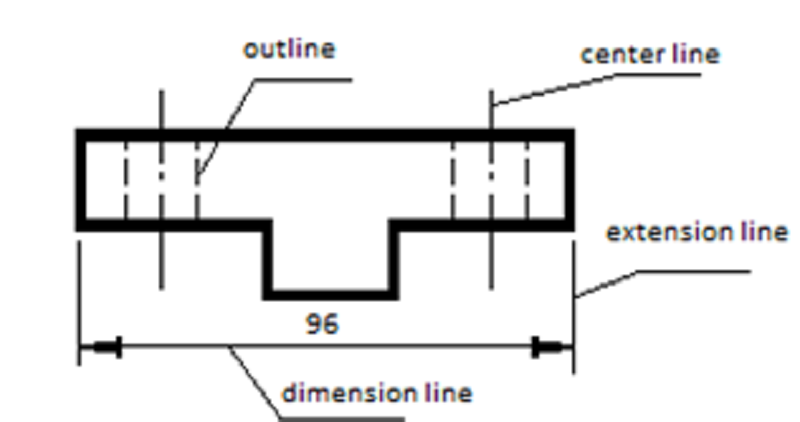

Which line is wrongly represented in the figure above?
Dimension line
Center line
Outline
Extension line
A dimension that measures a radius or diameter of a circle is known as
Angular dimension
Radial dimension
Linear dimension
Aligned dimension
Which of the following is NOT a dimension line?
TICK
DOT
CHAIN
CLOSED BLANK

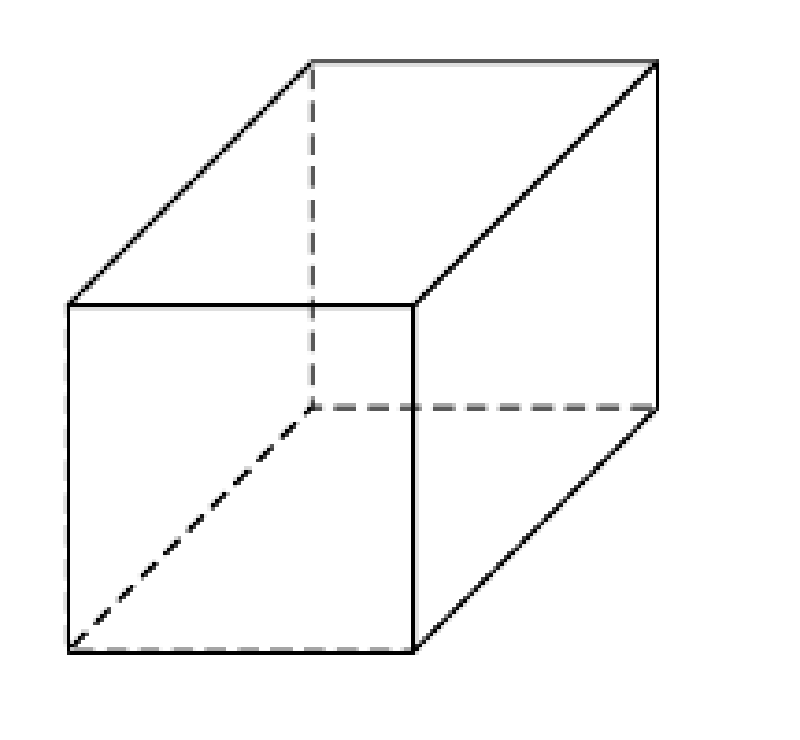

What is the name of the dotted line shown in the picture?
Visible line
Break line
Center line
Hidden line

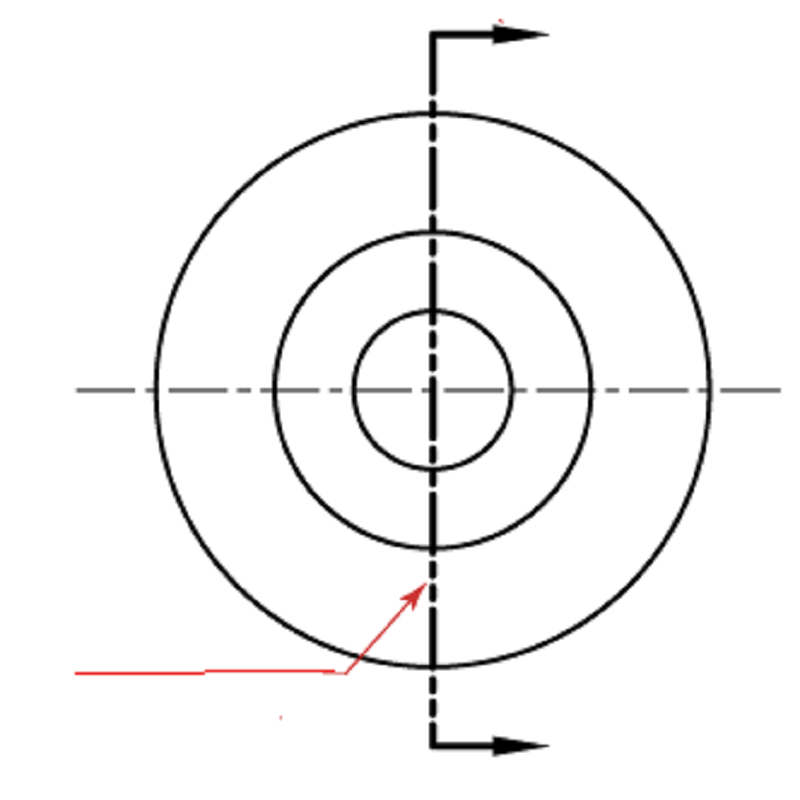

What is the name of the line shown by the arrow?
Hidden line
Cutting Plane
Section line
Phantom line

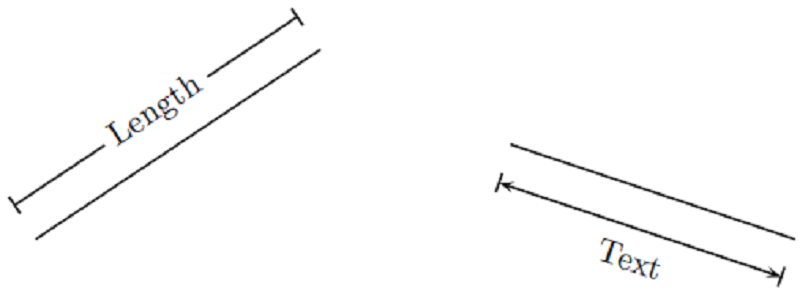

The following lines are known as what type of lines?
Visible line
Dimension line
Cutting plane line
Phantom line
Dimension does NOT represent which of the following?
Length
Width
Material
Depth

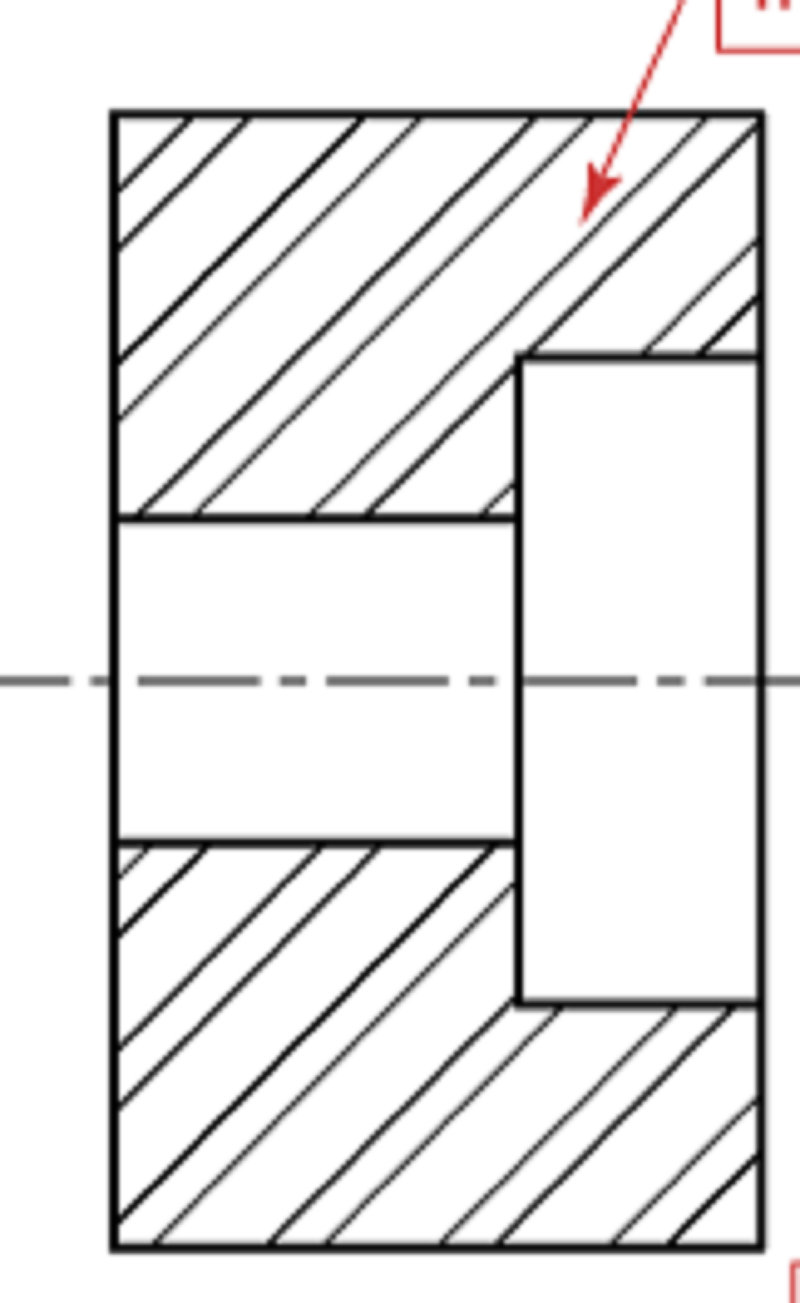

What type of line is shown by the arrow?
Cutting plane
Phantom line
Visible line
Section line
A break line is a line that shows a cut way of an object.
True
False
Visible line shows non visible objects
True
False
A dimension line shows ONLY the location of an object.
True
False
